- RFID Printer & Label Bundle
- Optimised to Print Silverline Labels
- Track Labels on Liquid and Metal objects
- Various Size Labels Available
- Overview
- Features
- resources
RFID tagging on-demand from Zebra
Get RFID printing on demand with the Zebra RFID printer and specialist Silverline RFID tags. This unique bundle from Zebra combines an RFID modified ZT410 printer with specialist Silverline tags to enable a broader tracking of items, including metal surfaces and liquid filled containers. Silverline labels are designed to work on a variety of surfaces which in the past have presented difficult for RFID applications – extending the possibilities of RFID tracking. The Zebra ZT410 printer has been specially modified to enable the running of thick labels through the RFID barcode printer. Coupled together, you are assured of a label printer combination that is built to deliver reliable on-demand printing of RFID labels.

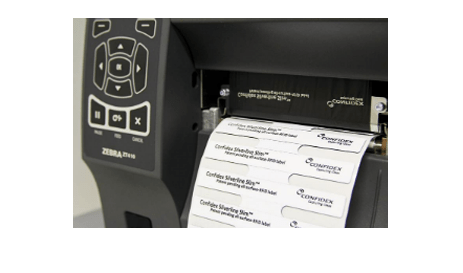

Custom ZT410 RFID Printer
The Zebra ZT410 RFID printer is specially modified to print and encode Zebra’s exclusive Silverline labels perfectly. Designed to print labels up 0.8mm thick at 203 DPI, the ZT410 will print a quality Silverline tracking label with your unique encoding. Please specify when ordering that you require the custom ZT410 for the Silverline RFID labels.
PRINT WIDTH
4.09″/104 mm
PRINT RESOLUTION
203 dpi resolution
MAXIMUM PRINT SPEED
Up to 14″/356 mm per second
MAXIMUM LBAEL THICKNESS
Optimized to print Silverline labels up to 0.8mm thick.
COMMUNICATION METHODS
Parallel (Bi-direction interface)
Wireless: Zebranet Printer Server – supports 802.11 a/b/g/n networks
RS-232 Serial
10/100 Ethernet
Bluetooth 2.1
USB Host
Optional: Parallel (Bi-directional interface)
Wireless: ZebraNet® Printer Server – supports 802.11 a/b/g/n networks
Silverline RFID Media
Silverline Labels, supplied exclusively through Zebra are available in a number of sizes for meeting the wide requirement of applications. The Silverline labels are versatile all-surface RFID labels with industry leading printing capabilities and excellent performance.
RFID PROTOCOL
UHF EPC Gen 2 V2/ISO 18000-6C
MEMORY CONFIGURATION
Monza 4QT: EPC 128 bit; User 512 bit; TID 96 bit
OPERATIONAL FREQUENCY
Available in either:
EU 865 – 869 MHz
US 902 – 928 MHz
AVAILABLE SIZES
Available in either:
Silverline: 100 mm W x 40mm H x 0.8 mm thick/ 3.94” W x 1.57” H x 0.03” thick
Silverline Micro: 55 mm W x 14mm H x 0.8 mm thick/ 2.17” wide x 0.55” high x 0.03” thick
Silverline Slim: 110 mm W x 13 mm H x 0.8 mm thick/ 4.33” W x 0.51” H x 0.03” thick
READ RANGE
Available in either:
Silverline: Up to 5 m / 16 ft
Silverline Micro: Up to 1.2 m / 4 ft
Silverline Slim: Up to 4 m / 13 ft
Features of Zebra’s RFID Printer Bundle
Labels That Adhere to Curved Surfaces
The Silverline labels can be applied to curved and metallic surfaces – ideal for liquid containers and metal surfaces.
Perfect Combination
The Zebra ZT410 custom and Silverline labels have been designed by Zebra to work perfectly together. The redesigned ZT410 RFID printer optimised Silverline labels and high-quality Zebra ribbons combination provides for excellent print quality, encoding accuracy and ease of solution deployment and use.
Easy to Operate Printer
Simple multilingual interface and bi-fold doors with clear viewing area enable simple media replacement and user-friendly design.
On Demand RFID Tagging
The Silverline RFID solution from Zebra enables businesses to setup and print asset tags for tracking a wide range of items – on demand. No specialist pre-printed asset labels are required for day to day labelling as you print and encode what you want when you want.
