Ultra-Compact desktop printers from Zebra
Zebra ultra-compact printer series provide dependable and fast printing for labels, receipts and wristbands. Designed for the most space constrained environments, the Zebra ZD410 direct thermal printer and the Zebra TLP2824 Plus thermal transfer printer produces crisp clear prints when and where you need them. The Zebra compact printer range delivers its users an array of connectivity options from USB and a serial connection to Wi-Fi and Bluetooth, ensuring you flexible printing options.

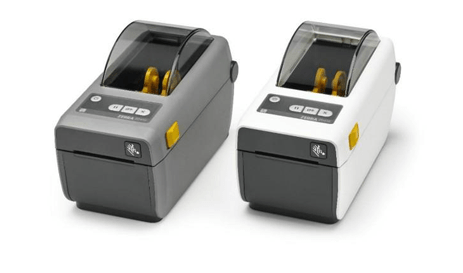

ZD410 Direct Thermal Desktop Printer
The Zebra ZD410 printer is ideal for producing thermal prints that have a life of less than a year. An ultra-compact printer, the ZD410 is the smallest in its class with a maximum print width of 2.2 inches. With a range of connectivity options and resolution options of 203 DPI or 300 DPI, you can be assured of a print that is perfect every time.
PRINT WIDTH
2.2″/56 mm
PRINT RESOLUTION
203 dpi resolution
300 dpi resolution
MAXIMUM PRINT SPEED
Up to 6″/152 mm per second (203 dpi)
Up to 4″/102 mm per second (300 dpi)
MEDIA SENSORS
Multi-position transmissive and full width reflective sensors
COMMUNICATION METHODS
USB 2.0, Bluetooth Low Energy
USB Host RS-232 Serial (option)
10/100 Ethernet (option) Wireless: 802.11ac with Bluetooth 4.1 (option)
TLP 2824 Plus Thermal Transfer Desktop Printer
The Zebra TLP 2428 printer produces 2.2-inch thermal prints for longer life labels. An easy to use and set-up printer the TLP 2824 comes with standards USB and serial or parallel connectivity options. The printer delivers 203 DPI prints at a maximum speed of 4 inches per second, for clear and fast label designs.
PRINT WIDTH
2.2″/56 mm
PRINT RESOLUTION
203 dpi resolution
MAXIMUM PRINT SPEED
Up to 4″/102 mm per second
MEDIA SENSORS
Standard: Fixed reflective and transmissive sensors
COMMUNICATION METHODS
Centronics Parallel port
Serial interface
USB 1.1
10/100 Ethernet
Innovative Features of Zebra’s Compact Desktop Printers
Designed for space-constrained environments
The smallest desktop printers available, the Zebra ZD410 and TLP 2428 are designed to fit into the most compact work areas. Perfect for retailers, healthcare or pharmacies the compact printer series can print a range of 2-inch-wide labels or wristbands quickly and clearly.
Easy to use printers
Ideal for space-constrained applications the ZD410 provides a number of status icons to help resolve printer issues and with easy support access via the NCF enabled help, you can be assured that your printer is easy to set-up and print errors simple to resolve.
Application and Connection Flexibility
The ZD410 provides a number of connectivity options providing wired or wireless printing and a range of media options. You can benefit from a range of connectivity options including, USB, auto-sensing serial and Ethernet networking to wireless options including WiFi and Bluetooth.
